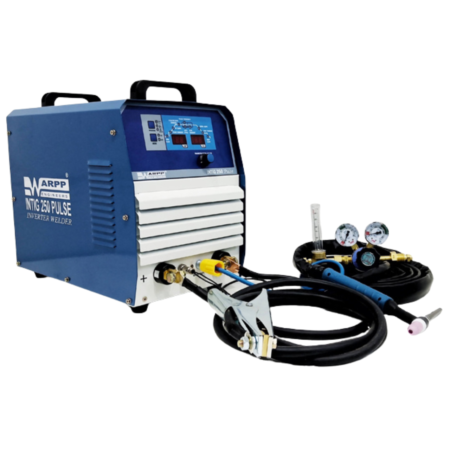

INTIG 202 & 250 Pulse Digital Inverter Based MMA/TIG/PULSE TIG Welding machine Warpp
INTIG PULSE Series machines are microprocessor controlled fully Digital lGBT Inverter based arc welding power source with advanced inverter technology. They are widely used for DC MMA, DC TIG & DC PULSE TIG welding In mild steel, alloy steel, stainless steel, copper & Titanium.
FEATURES
- Advanced Soft Switching inverter technology and high efficiency.
- Digital display of current with precise preset function.
- Digital display of voltage.
- High Power factor.
- High Switching frequency, hence low volume and weight.
- Adjustable arc force in MMA.
- Built in High Frequency.
- 2/4 Track function in TIG.
- Adjustable Down Slope function in TIG.
- Can be used with extended welding cable in MMA
- Under voltage, Over voltage, Phase absence and over heat protection.
Basic Outfits :
- Power Source with Wheels & Remote socket for torch trigger switch.
Optional Accessories:
- Water Circulation System, TIG Welding Torch, Argon Regulator flowmeter.
- Wired Remote Controller, Wired remote controller with digital display of current.
Categories: WARPP PRODUCTS, Welding Equipment
Description
| Model | Input Power (KVA) |
Welding Current Range(A) |
Peak/Base Current(A) |
Start/Stop Current(A) |
Duty Cycle | Weight (Kg) |
Dimensions (L*W*H) |
|---|---|---|---|---|---|---|---|
| INTIG-202 pulse | 7.5 | 5~200 | 5~200 | 5~200 | 60% | 19 | 390*240*400 |
| INTIG-250 pulse | 9.8 | 5~250 | 5~250 | 5~250 | 60% | 23 | 530*270*420 |
| Input Supply-380~440 V 3-Phase 50hz supply for Intig 250 Pulse |
| Input Supply-230V, Single Phase 50hz supply for Intig 202 Pulse |
| Open Circuit Voltage -75 Volts | Pulse Frequency(Hz)-0.1-99.9 |
| Insulation Grade-H | Pulse Duty Cycle(%)-5-100 |
| Up/Down Slop Time(sec.)-0-10 | Efficiency at Full load(%)-89 |
| Pre Gas time(Sec)-0-5 | Power Factor-0.95 |
| Post Gas Time(sec.)-0-60 |
