INMIG 400500600 I Amps MIGMAG Welding Machine
INMIG 400500600 I Amps MIGMAG Welding Machine

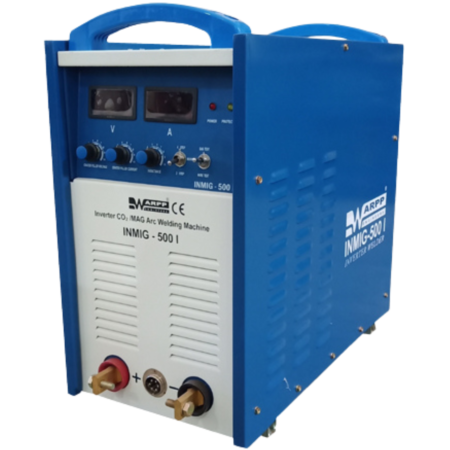

INMIG 400/500/600 I Amps Inverter Based MIG/MAG Welding Machine Warpp

INMIG-i Series welders are Semi-Automatic Gas Shielded Metal arc Welding machines with advanced wave control technology. Machines are available in 400/500/600 Amps range.

FEATURES

  • Advanced Switching inverter technology, low spatter.
  • Continuous adjustment of welding voltage and current.
  • Slow start facilitates easy arc striking.
  • Reduced melting ball at the end of welding.
  • High operating frequency hence small size and weight.
  • High Power Factor & Efficiency.
  • Preset Digital Display of Welding voltage and current.

BASIC OUTFITS :

  • Power Source, Wire Feeder, MIG Torch,
  • 3 Mtr. Length.
  • Regulator-flow meter-Heater.
  • Interconnecting cable
  • Earthing Cable with Clamp.

Categories: WARPP PRODUCTS, Welding Equipment

Description



Model Input Power
(KVA)

Current

Range(A)

Volatage Range(v) Duty Cycle) Weight
(Kg)
Dimensions
(L*W*H)
INMIG-400 i 17.5 50~400 17~40 100% 43 600*300*560
INMIG-500 i 25 50~500 17~50 100% 46 600*300*560
INMIG-600 i 33 50~600 17~50 60% 57 600*300*560
Input Supply-380~440 V 3-Phase 50hz supply
Efficiency at full load(%) -89
Open circuit voltage- 60-70 volts DC
Power Factor 0.87
Wired feed Speed(m/min) -1.3 ~21 m/min Torch connection EURO type
Motor type-print Motor two roll Drive
wire feeder weight-10kg
