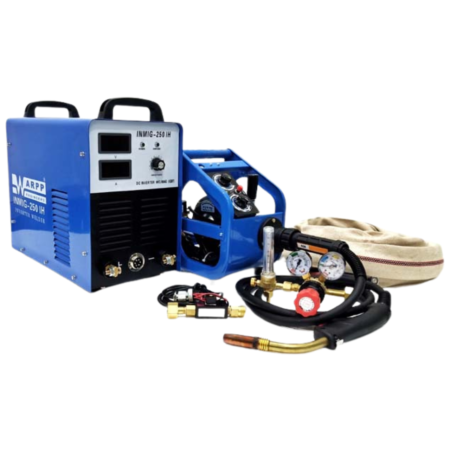

INMIG 250 IH Amps Inverter Based MIG/MAG Welding Machine Warpp
INMIG IH Series welders are Semi – Automatic Gas Shielded Metal Arc Welding Machine. These machines employ full bridge IGBT (Module) inverter technology.
FEATURES
- Full Bridge IGBT (Module) inverter technology.
- Continuous adjustment of welding Voltage and current.
- Digital display for voltage & current.
- Slow start facilitates easy arc Striking.
- Preset function for voltage & current
- Reduced melting ball at the end of welding.
- High operation frequency hence small size and weight.
- High power Factor & Efficiency.
- Compact size and light in weight.
Basic Outfits
- Power Source, Wire Feeder, MIG Torch 3 Mtr. length, Regulator flow meter and Heater, Interconnection Cable, Earthing Cable with Clamp.
Note : Package with Scope of Supply other than above is available on request.
Categories: WARPP PRODUCTS, Welding Equipment
Description
| Model | Input Power (KVA) |
Current Range(A) |
Power factor | Weight (Kg) |
Volatage Range | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| INMIG-250 IH | 8 | 25-250 | 0.95 | 24 | 15-35 | 460*245*380 |
| Input Supply-380~440 V 3-Phase 50hz supply |
| Efficiency at Full Load(%) -89 |
| Open Circuit Voltage-55~65 Volts |
| Rated Duty Cycle -60%(40°C & 10 min Standard) |
| Wire Feed Speed(m/min) | Torch connection EURO type |
| Motor Type- Print Motor | Two Roll Drive |
| Wire Feeder Weight-10kg | Efficiency at Full load(%)-89 |
