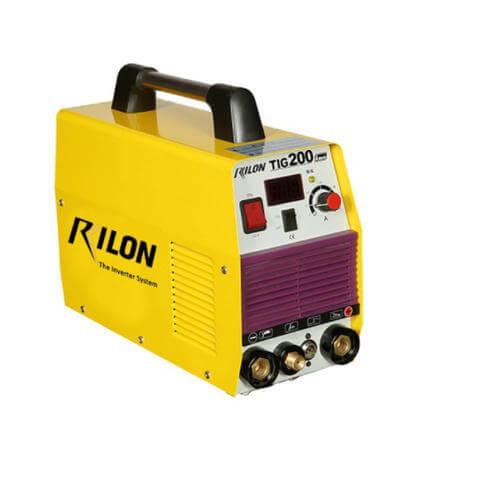

Rilon TIG 200 Mosfet Welding Machine |
- ortable. Professional. Rugged. Affordable.
- Advanced inverter technology delivers superior TIG performance. With HF TIG arc starting, allows you to strike the arc easily with high frequency,and makes it easy to establish an arc under a variety of conditions.
- Easy setting approach between TIG with HF striking.
- utomatic Hot Start boosts the current during starting to make striking an arc easier.
- Ideal for small and medium steel fabrications ( steel and stainless steel, copper, titanium, etc.).
- Auto-Protection against over-voltage,over-current and over-heated. Energy Saving – Compared with the traditional TIG machine more efficient.
- Smaller, lighter and portable, this equipment is protected by a matal (solid plastic optional) casing
Categories: RILON PRODUCTS, Welding Equipment
Description
| Parameters | Specification |
|---|---|
| Rated Input Voltage(V) | AC220V??15% 1P |
| Arc-Initiating(TIG) | H-F |
| Rated Input Current(A) | TIG:28.2 MMA:32.6 |
| Efficiency(%) | 80 |
| Input Frequency (HZ) | 50/60 |
| Power Factor | 0.73 |
| Rated Input Power(KVA) | TIG:6.2 |
| MMA:7.1 Protection Grade | IP21 |
| Open Circuit Voltage(V) | 56 |
| Weight(kg) | 9 |
| Current Range(A) | 10-200 |
| Dimension(mm) | 395*153*301 |
| Duty cycle at maximum current | 60%@25 |
