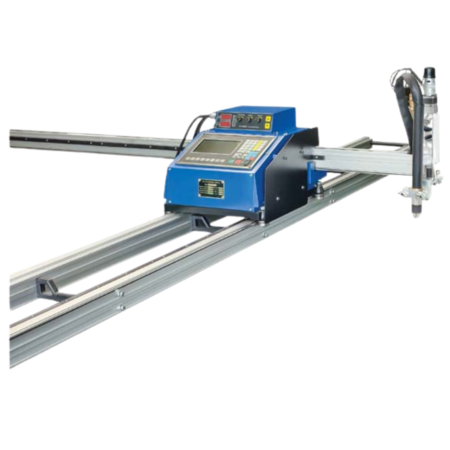

Portable CNC Cutting Machine Warpp
The portable CNC cutting system from WARPP offers a simple solution to precision cutting requirements .The machine can be either used with flame cutting (Oxy-Fuel) torch Or it can be coupled with suitable plasma power source. When coupled with plasma power source, the machine is equipped with arc voltage height controller. The machine has an USB interface through which CNC code can be transferred to the machine. The machine has standard library for commonly used shapes.
Features:
- Simple Design
- Easy to install
- Easy to use controls
- Break point restoration
- Automatic break point memory
Categories: WARPP PRODUCTS, CNC Cutting Machine
Description
| Parameters | Specification |
|---|---|
| Model |
P-CNC-1500*3000 F P-CNC-1500*3000 P |
| Input Supply | 230 v Single phase 50hz supply |
| LCD Dimension | 5.7 |
| Cutting Mode | Flame Cutting Only |
| Overall length of the cross Beam(mm) | 2000 |
| Overall length of the track | 3500 |
| Effective cutting length(mm) | 3000 |
| Effective cutting Width(mm) | 1500 |
| Cutting Speed(mm/min) | 80~3000 |
| Max. speed(mm/min) | 3000 |
| Cutting Thickness in Plasma | Not Applicable |
| Cutting Thickness in Flame(mm) | 6~100 |
