Annular Cutters: Applications and Advantages in Metalworking
Annular cutters are indispensable tools in the metalworking and construction industries. Known for their precision and efficiency, these hollow, cylindrical cutting tools are specifically designed for drilling large, clean, and accurate holes in various types of metal. In this blog, we will explore the uses, benefits, and applications of annular cutters, making it clear why they are a preferred choice over traditional drill bits.

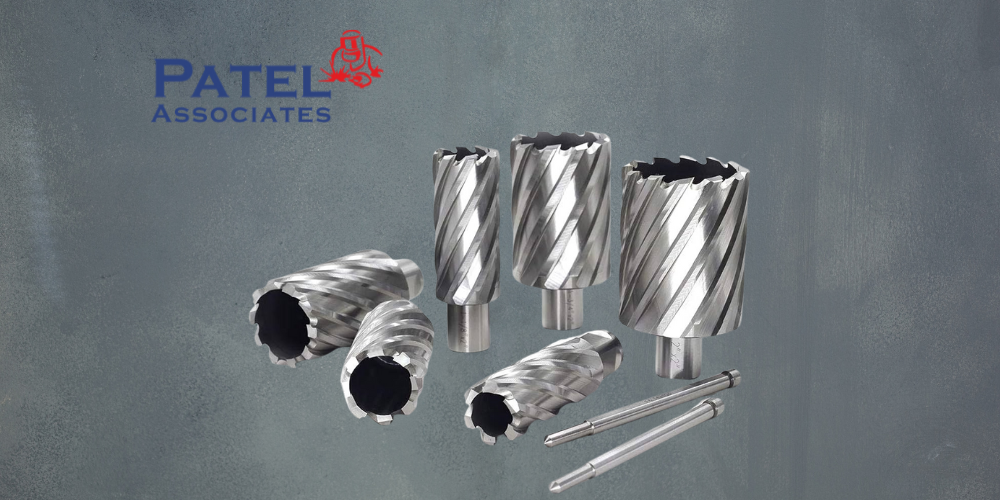

What Are Annular Cutters?
An annular cutter, often referred to as a core drill or broach cutter, is a specialized tool used to cut holes in metal without drilling the entire core. Unlike twist drill bits, which remove all the material inside the hole, annular cutters only cut the periphery, leaving a solid cylindrical slug at the center. This design not only reduces material waste but also minimizes effort and increases efficiency.
Key Features of Annular Cutters
- Material Composition: Made from high-speed steel (HSS), cobalt, or tungsten carbide for durability and resistance to wear.
- Precision: Delivers clean and accurate cuts, often without the need for further finishing.
- Flutes: Designed to evacuate chips effectively, reducing heat and friction during operation.
- Pilot Pins: Many annular cutters come with pilot pins to help center the tool and start the cut accurately.
Uses of Annular Cutters
- Metal Fabrication
- Annular cutters are widely used in metal fabrication shops for drilling precise holes in structural steel, plates, and pipes.
- Example: Creating bolt holes for joining beams in construction projects.
- Construction Industry
- Ideal for on-site drilling of large holes in steel structures like bridges, railways, and industrial frameworks.
- Example: Drilling anchor holes in I-beams during building assembly.
- Automotive and Aerospace
- Used for machining components where precision and consistency are crucial.
- Example: Creating holes in automotive chassis or aircraft panels.
- Shipbuilding
- Annular cutters are essential for cutting holes in thick steel plates used in ship hulls and decks.
- Example: Drilling holes for mounting machinery or structural reinforcements.
- Pipe Installation
- Widely used for making clean and accurate holes in pipes, especially for plumbing and industrial applications.
- Example: Drilling holes for branch connections in pipelines.
- Maintenance and Repair
- Useful in maintenance tasks where existing metal structures need modifications or repairs.
- Example: Enlarging or re-drilling worn-out bolt holes.
- Heavy Equipment Manufacturing
- Plays a critical role in producing parts for heavy machinery, such as excavators, cranes, and loaders.
- Example: Drilling precise mounting holes in machine frames.
Advantages of Using Annular Cutters
- Precision and Accuracy
- Delivers cleaner and more accurate holes compared to twist drill bits.
- Faster Cutting Speeds
- Reduces the time required for drilling, increasing overall productivity.
- Reduced Material Waste
- Cuts only the periphery, leaving a solid core, which minimizes waste.
- Lower Power Consumption
- Requires less power compared to traditional drilling methods due to its efficient design.
- Versatility
- Compatible with various materials, including mild steel, stainless steel, aluminum, and cast iron.
- Extended Tool Life
- Made from durable materials like carbide and HSS, annular cutters last longer with proper maintenance.
- Minimized Heat Generation
- Efficient chip removal design helps reduce heat, protecting both the tool and the workpiece.
Types of Annular Cutters
- High-Speed Steel (HSS) Cutters
- Affordable and suitable for cutting mild steel and other soft metals.
- Cobalt Annular Cutters
- Enhanced heat resistance, making them ideal for harder metals and longer operations.
- Carbide-Tipped Cutters
- Best for heavy-duty applications and cutting through tough materials like stainless steel.
- Special Coated Cutters
- Features coatings like titanium nitride for improved wear resistance and performance.
How to Use Annular Cutters Effectively
- Choose the Right Tool
- Match the cutter material and size to the job requirements.
- Use a Magnetic Drill
- Annular cutters are often used with magnetic drills for stability and precision.
- Lubricate Properly
- Apply cutting fluid to reduce friction and extend tool life.
- Secure the Workpiece
- Ensure the metal is clamped or fixed to avoid movement during drilling.
- Control Speed
- Operate at the recommended speed for the material being drilled.
Maintenance Tips for Annular Cutters
- Clean After Use
- Remove metal chips and debris to prevent rust and wear.
- Inspect Regularly
- Check for signs of wear or damage and replace dull cutters.
- Store Properly
- Keep cutters in a dry, protected environment to avoid corrosion.
- Use Quality Cutting Fluid
- Regular lubrication ensures smooth operation and longer tool life.
