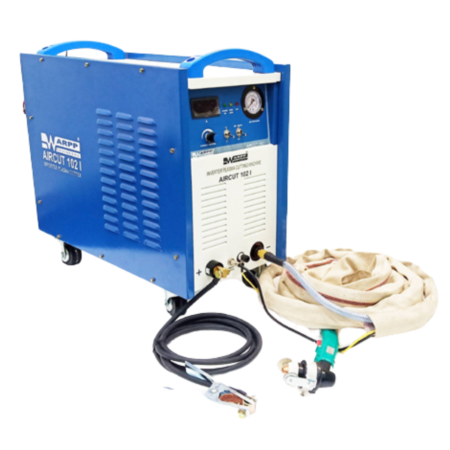

AIRCUT-102 I & 150 I Inverter Based Air Plasma Cutting Machine Warpp
Aircut- i Series Machine are Inverter Based Air Plasma Cutting Machines. They Are Widely Used for Cutting Ferrous as well as Non Ferrous Metals Using Inexpensive Air as the Cutting Media
FEATURES
- Advanced ‘Soft Switching’ Technology, Hence More Reliability.
- High Frequency Arc Striking with Pilol Arc.
- Stable Out Put Current
- Precise Preset & Display of Cutting Current
- Air Test Switch to Set the Air Flow Precisely.
- Pressure gauge on the front panel
- Higher on load voltage & hence higher speed of cutting.
- High Power Factor & Efficiency.
- Good Cutting Quality.
- Continuous Adjustment of Current Possible.
- Two levels of Air flow to Ensure Smooth Pilot Arc.
Basic Outfits :
- Power Source, 5mtr Length Air Plasma Cutting Torch, Air Filter & Earthing Cable with clamp.
- Nozzle. 3 sets of Electrode.
Optional Accessories :
- Machine mountable Straight torch.
- Plasma trolley with rail.
- Torch pendant for ON/OFF control.
Categories: WARPP PRODUCTS, Welding Equipment
Description
| Model | Cutting Thickness | Input Power (KVA) |
Current Range(A) | No load voltage | Weight (Kg) |
Dimensions (L*W*H) |
Torch Cooling type |
|---|---|---|---|---|---|---|---|
| AIRCUT 102 i |
Clean cut in MS,SS-25mm
Rough cut MS,SS -30mm
Piercing capacity -12mm
Recommended thickness
on Trolly-20MM
|
18 | 30-100 | 340 | 51 | 690*340*590 | AIR |
| AIRCUT 150i |
Clean cut in MS,SS-45mm
Rough cut MS,SS -50mm
Piercing capacity -20mm
Recommended thickness
on Trolly-32MM
|
31.5 | 30-150 | 340 | 60 | 720*400*610 | AIR |
| Input Supply-380~440 V 3-Phase 50hz supply |
| Power factor- 0.9 |
| Duty Cycle-100% |
| Air pressure requirement in 5~6 kg/cm2 | Air flow requirement 10~12 CFM or>300 LPM |
